 罩式洗碗机 罩式洗碗碟机 罩式洗碗机公司

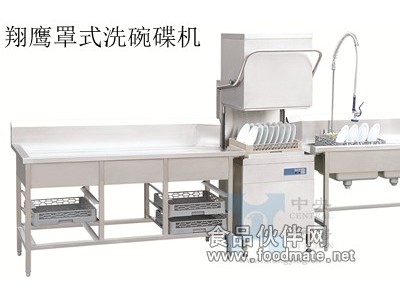

罩式洗碗碟机

产地/品牌：浙江/翔鹰；   型号：XYXWZ1型；   电量：16.1KW/3PH/380V；  生产能力：60/40/30筐/H。 规格：705×850×1490mm

罩式洗碗碟机 优势 Performances

1、400毫米的净通高度，洗涤大碗碟更为方便；

400mm free height,it is more convenient to wash big dishes.

2、微电脑自动控制系统，操作更简单；

Microcomputer automatic control system,it is more simple to operate.

3、后敞式顶罩，热蒸汽后溢，使操作感觉舒适；

Open-type overhead guard can make hot steam spill at the back,and it make operating pole comfortable.

4、圆弧角洗涤水槽:无焊接、无腐蚀、易操作、易清洗。

Wash jar with arc cornet:no welding,no corrosion,easy to operate and wash.

罩式洗碗碟机 特点 Features

1、倾斜式内顶盖:防止残余的洗涤滴落在干净的盘碟上；

Sloping inner machine hood ceiling :prevents suds from dripping onto clean dishes after final rinsing.

2、高效旋转式洗涤和漂洗臂设计:充分利用了水泵压力并降低洗涤用水量(3升/篮)；

Super-efficient rotating wash and final rinse arm design:allows for reduced pump pressure and  lower water consumption prebasket(3 liter/basket);

3、三档洗涤循环时间选择:适应于不同的洗涤要求；

Choice of 3 washing cycle time:ensures perfect results,regardless of the soil level if the dishes.

4、触摸式薄膜开关，外形美观大方，按钮形象，操作简单。数字温度实时显示控制面板，控制系统可在现场通过插线连接进行故障诊断，以保证更方便快捷的售后服务。模块化电路板，可靠性及通用性更强。

Digital Temperature Control display,control system with integrated infrared interface,can guarantee first –class service.Modular control broad,easy for assembly and repair,flexible arrangement and use.

罩式洗碗碟机 概述

本机全部引进美国先进技术．工要部件均采用进口元器件．强水压，大流量，确保了的洗涤效果，自动控部分微电脑控制系统和专业设计制体以及新颖的操作面板获得的操作过程，可以满足各类盘、碟、碗以及玻璃杯的高标准洗涤要求;经国家卫生部门和质量安全机构检测，清洗出的餐具卫生效果达到国家卫生标准和国家质量安全标准。

本机特别适用于宾馆、饭店、餐厅和食掌等卫生洗涤餐具的场所．

Brief

American advanced technology is recommended for the production the major elements are all imported from aboard High water pressure，huge volume of water，assure the perfect cleaning effect。Automatic computer continuerol system and professional design body with a novel operation panel，providing a comfort-able operation process，can meet with the high standard cleaning requirement of various kinds of plates，platters and bowls。

It is especially fit for hotels restaurants and dinning rooms

罩式洗碗碟机 主要结构及工作原理

该机主要由微电脑控制系统、清洗系统、漂洗系统、不锈钢机架组成。

该机由不锈钢水泵将洗涤水从水槽中抽出加压并循环使用，水槽内的水温温控器控制在55±5℃。在洗涤过程中洗涤篮固定不动，上下洗涤臂由洗涤水推动旋转．这种方式的优点在于洗涤臂可从各个角度对碗、碟进行清洗，不存在死角，保证了洗涤质量。洗涤程序完毕后是漂洗程序，漂洗臂喷出摄氏85±5℃的高温净水(洗杯时温度控制为65C)，上程序的漂洗水作为下次的洗涤水用，从而保证了洗涤水的清洁性．漂洗时，用分配器自动加人催干剂，能迅速挥发餐具表面水分，不留痕迹，并起到消毒的作用．具有热能回收装置，节约能源30％。

Min Structure＆Principle of Running

It is made up with cornputer control system cleaning system rinsing system and stainless steel frame.

It draws off the water from the chute through the stain-less steel pump。Pressurizes and circulates it。The temperature of the water in the chute is always controlled between 50(、一60(、by the temperature controller。While cleaning，the basket is fixed，and the upper and lower washing arms will be rotated by the water。The advantage of this cleaning method is that the washing arms can clean the bowls and Plates in different angles assures a good cleaning effect The next procedure is rinsing The rinsing am spray out hot water between 80℃一90℃（65℃when cleaning the cups）， the water in the last procedure then used as the rinsing water that makes the water clean While rinsing the drying agent was Put Into it by divider automatically， that can volatilize the water on the dishes’ surface without any trail, and at the same time, it can sterilizing the dishes

----------------------------------------------
